Inspect AI Agent Traffic - LLM & MCP Proxy

When you use an AI coding agent such as Claude Code or OpenCode, or an AI library such as LangChain or LangGraph, you often have no visibility into the HTTPS traffic it sends to LLM APIs (Anthropic, OpenAI, etc.) and MCP servers. Running MockServer as an HTTPS proxy gives you a complete record of every request and response — including model selection, token counts, tool calls, and streamed completions — with no changes to application code.

Because MockServer performs TLS man-in-the-middle (MITM) interception, it can decrypt and log HTTPS traffic while forwarding it transparently. Streaming responses (Server-Sent Events used by LLM APIs) are relayed incrementally so the agent remains fully responsive — there is no buffering delay.

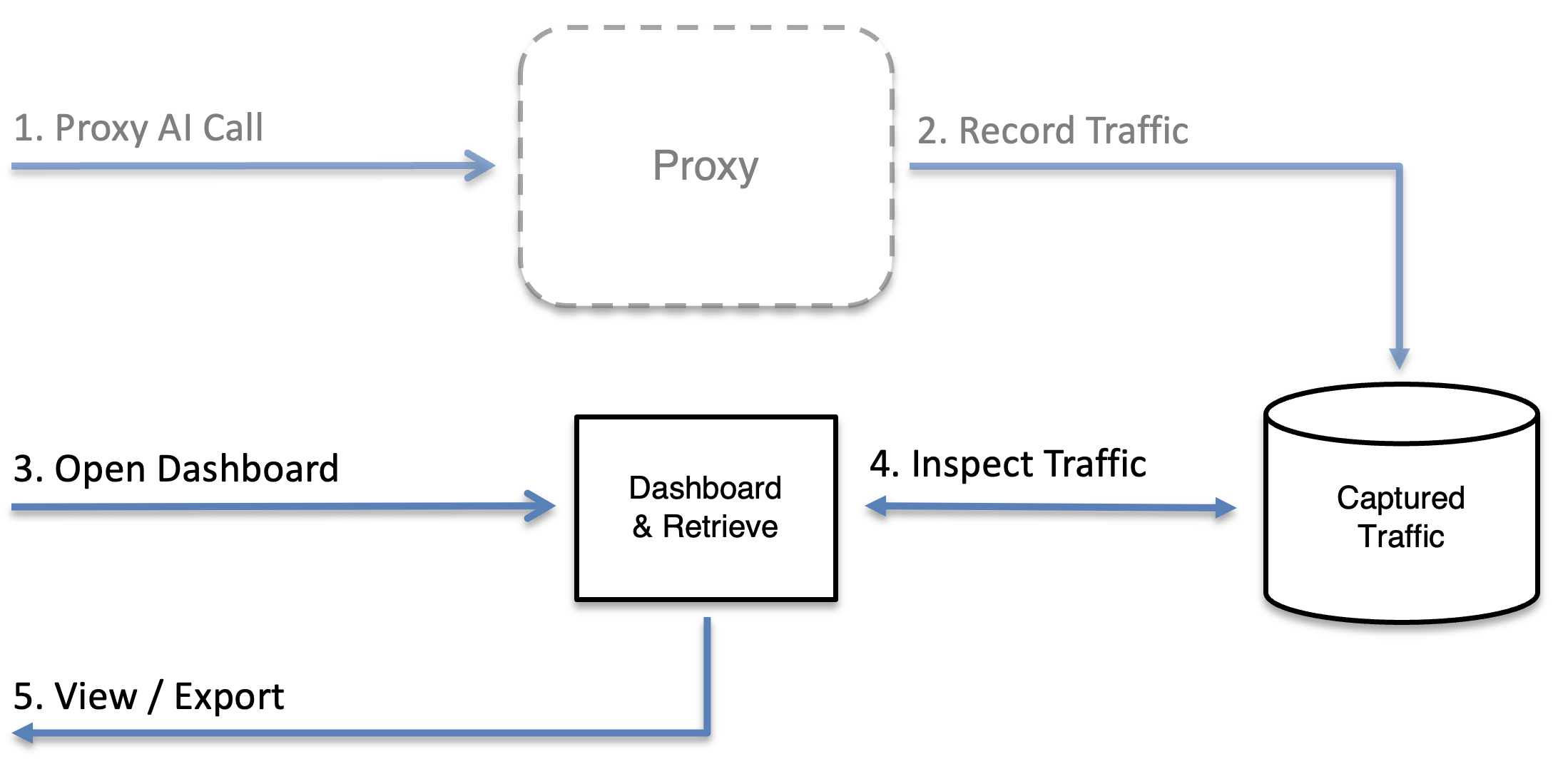

How It Works

1. Start MockServer as a proxy on a local port
2. Trust the MockServer CA certificate so TLS connections succeed
3. Configure your AI tool to send traffic through the proxy
4. View the captured traffic in the dashboard or via the retrieve API

1. Start MockServer as a Proxy

Any MockServer instance acts as a transparent HTTPS proxy — no special mode is required. Start one using your preferred method:

The fastest way to run MockServer is a single command — pick whichever fits your environment. Every option below starts a server that mocks and proxies HTTP and HTTPS on one port (default 1080):

# Docker — no Java required
docker run -p 1080:1080 mockserver/mockserver

# Node — no Java and no Docker (downloads a self-contained bundle)
npx -p mockserver-node mockserver run -p 1080

# Homebrew (macOS / Linux)
brew install mockserver && mockserver run -p 1080

Confirm it is up (the status endpoint returns 200 once MockServer is ready):

curl -i -X PUT http://localhost:1080/mockserver/status

MockServer is flexible and support numerous usage patterns.

MockServer can be run:

• programmatically via a Java API in an @Before or @After method
• using a JUnit 4 @Rule via a @Rule annotated field in a JUnit 4 test
• using a JUnit 5 Test Extension via a @ExtendWith annotated JUnit 5 class
• using a Spring Test Execution Listener via a @MockServerTest annotated test class
• as a Docker container in any Docker enabled environment
• via a Helm chart in any Kubernetes environment
• from the command line as a stand-alone process in a test environment
• via a Maven Plugin as part of a Maven build cycle
• as a Node.js (npm) module from any Node.js code
• as a Grunt plugin as part of a Grunt build cycle
• as a deployable WAR to an existing application server
• via a client library binary launcher (Node, Python, Ruby, Go, .NET, Rust) — downloads a cross-platform, JVM-less binary bundle automatically
• as a throwaway Testcontainers container started and stopped automatically by your test run
• as a shared, centralised deployment across multiple teams or CI pipelines — another good option when several projects share one running MockServer

To simplify configuration all versions (except the deployable WAR) use a single port to support the control plane and data plane in HTTP, HTTPS or SOCKS.

MockServer is available in the following formats:

• java dependency
• Docker container
• Helm chart for Kubernetes
• executable jar
• Homebrew package
• maven plugin
• npm plugin
• Grunt plugin
• deployable WAR that runs on JEE web servers
• client library binary bundle — a self-contained, cross-platform binary (no Java required) downloaded automatically by the Node, Python, Ruby, Go, .NET, and Rust clients

It is also possible to build and run MockServer directly from source code

The quickest option for local use:

docker run -d --rm -p 1080:1080 mockserver/mockserver

Or download and run the executable JAR:

java -jar mockserver-netty-no-dependencies-7.1.0.jar -serverPort 1080

Once started, MockServer listens on port 1080. Any HTTPS request sent through it will be intercepted, logged, and forwarded to the real destination.

2. Trust the MockServer CA Certificate

MockServer intercepts TLS by dynamically generating certificates for each upstream hostname, signed by its own Certificate Authority (CA). Your AI tool must trust this CA, otherwise TLS handshakes will fail.

The MockServer CA certificate (PEM format) is available at:

• From the GitHub repository: CertificateAuthorityCertificate.pem
• From the classpath (if using the Java API): /org/mockserver/socket/CertificateAuthorityCertificate.pem

Save the certificate to a local file (e.g. mockserver-ca.pem) and point your tools at it as shown below.

See HTTPS & TLS — Ensure MockServer Certificates Are Trusted for full details on adding the CA to operating systems, JVMs, and HTTP clients.

Security note: The default CA private key is public knowledge (it is in the MockServer git repository), which means the default CA should only be used in isolated development environments. For shared or semi-permanent setups, enable dynamicallyCreateCertificateAuthorityCertificate to generate a unique local CA whose private key is never published.

3. Configure Your AI Tool

Most AI tools and libraries route HTTPS traffic through the proxy and CA specified by standard environment variables. Set these before starting your tool:

export HTTPS_PROXY=http://localhost:1080
export NODE_EXTRA_CA_CERTS=/path/to/mockserver-ca.pem   # Node.js tools (Claude Code, OpenCode)
export SSL_CERT_FILE=/path/to/mockserver-ca.pem          # Python tools (LangChain, httpx)

Select your tool for specific instructions:

export HTTPS_PROXY=http://localhost:1080
export NODE_EXTRA_CA_CERTS=/path/to/mockserver-ca.pem

claude

export HTTPS_PROXY=http://localhost:1080
export NODE_EXTRA_CA_CERTS=/path/to/mockserver-ca.pem

opencode

export HTTPS_PROXY=http://localhost:1080
export SSL_CERT_FILE=/path/to/mockserver-ca.pem

import anthropic
import httpx

client = anthropic.Anthropic(
    http_client=httpx.Client(
        proxy="http://localhost:1080",
        verify="/path/to/mockserver-ca.pem",
    )
)

import openai
import httpx

client = openai.OpenAI(
    http_client=httpx.Client(
        proxy="http://localhost:1080",
        verify="/path/to/mockserver-ca.pem",
    )
)

4. View the Captured Traffic

Dashboard Traffic View

Open the MockServer dashboard in a browser:

http://localhost:1080/mockserver/dashboard

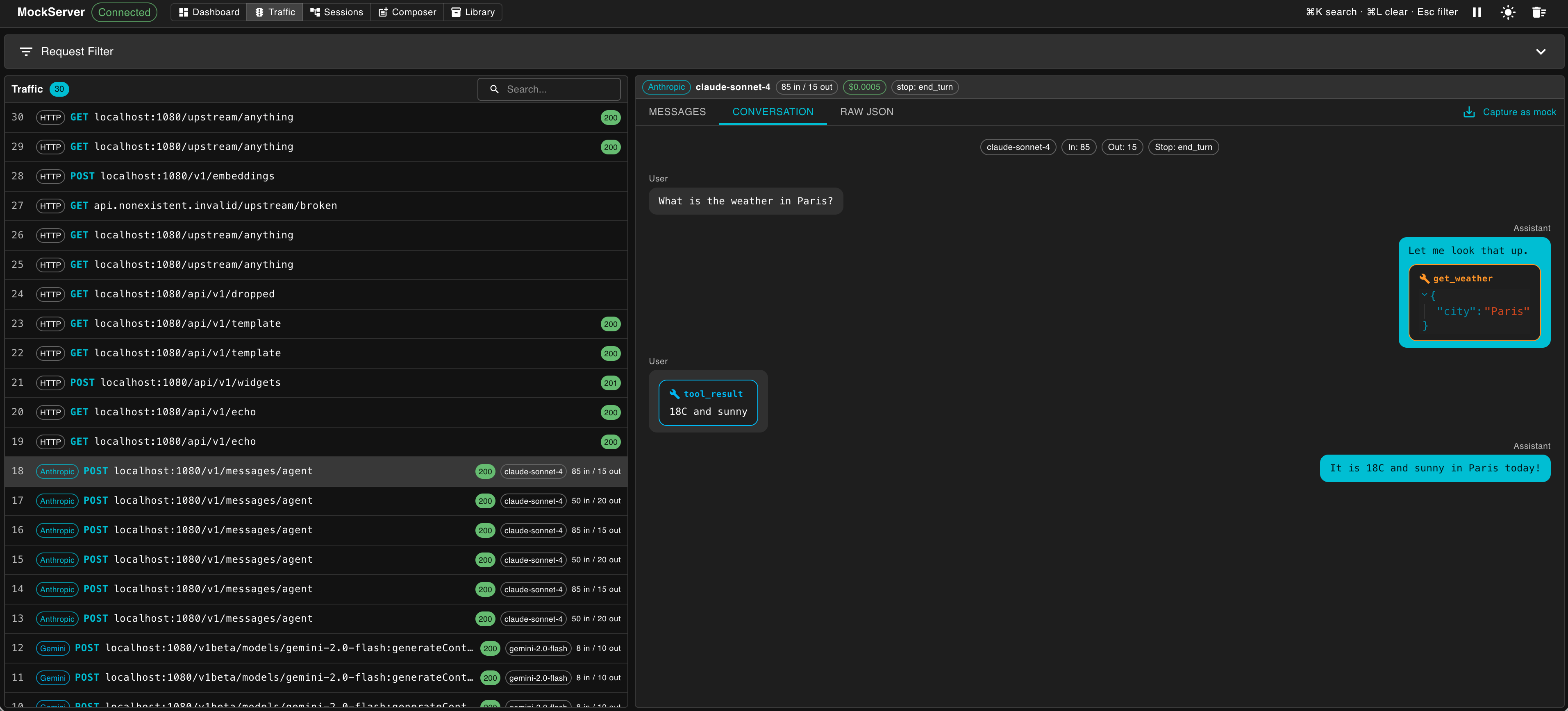

Click Traffic in the navigation bar to open the Traffic view. Unlike the standard Dashboard panels, the Traffic view shows all captured requests in one list — both requests that matched a mock expectation and requests that were forwarded to a real upstream.

The Traffic view shows a master list of every captured request/response pair. Click any row to open a detail pane on the right.

LLM Usage Strip

For any LLM request, a thin strip appears above the detail tabs showing the LLM provider, model name, token counts (input and output), estimated cost, and stop reason. This lets you check usage figures without switching to a different tab.

Detail Tabs by Traffic Kind

The detail pane adapts to the type of traffic detected:

Conversation View

The Conversation tab renders LLM exchanges as a chat transcript, making it easy to read multi-turn interactions at a glance. The Conversation tab is available for all five supported LLM providers: Anthropic, OpenAI, OpenAI Responses API, Gemini, and Ollama.

• User messages appear left-aligned; assistant messages appear right-aligned, styled as WhatsApp-style chat bubbles
• System prompts appear as a distinct banner above the conversation
• Tool calls (requests to use a tool) and tool results (the tool's output) each appear as their own labelled bubbles

SSE Timeline

The SSE Timeline tab is shown for streamed LLM responses. It displays each decoded Server-Sent Event as a separate row with the elapsed time since the first chunk arrived, making it easy to spot latency spikes mid-stream. The final reassembled message is also shown.

The Proxied Requests panel in the standard Dashboard view also shows all forwarded request/response pairs with full JSON body inspection.

Sessions View

Click Sessions in the navigation bar to see captured LLM traffic grouped into conversation swim-lanes. Each swim-lane is labelled with the scenario name and isolation value (for example, weather-agent / agent-A) and shows chips for each captured turn. Click a chip to open the Conversation view for that turn.

An Unscoped requests strip at the bottom collects requests that did not match any isolated session. The Sessions view requires that LLM conversation expectations were set up with a per-session isolation key — see LLM Conversation Mocking for details.

Download HAR and Export

To export captured traffic, open the Library view and click the Export sub-tab. Pick what to export from the dropdown — either the registered expectations or the captured requests — in one of five formats: MockServer JSON, HAR, OpenAPI 3, Postman v2.1 collection, or Bruno collection (.zip). Click Download. OpenAPI / Postman / Bruno round-trip into Swagger UI, Postman, and Bruno respectively. Streamed LLM responses are included as readable text in every format.

The same exports are also available via the retrieve API.

Retrieve API

Retrieve all proxied request-response pairs as JSON:

curl -s -X PUT http://localhost:1080/mockserver/retrieve?type=REQUEST_RESPONSES

Export in any of the supported formats by adding a format= query parameter (case-insensitive):

# HAR (HTTP Archive) — for browser DevTools or HAR analysers
curl -s -X PUT "http://localhost:1080/mockserver/retrieve?type=REQUEST_RESPONSES&format=HAR" -o traffic.har

# OpenAPI 3 spec — derived from observed traffic
curl -s -X PUT "http://localhost:1080/mockserver/retrieve?type=REQUEST_RESPONSES&format=OPENAPI" -o traffic.openapi.json

# Postman collection v2.1 — each captured request as an item with example response
curl -s -X PUT "http://localhost:1080/mockserver/retrieve?type=REQUEST_RESPONSES&format=POSTMAN" -o traffic.postman.json

# Bruno collection — zip archive of .bru files + bruno.json manifest
curl -s -X PUT "http://localhost:1080/mockserver/retrieve?type=REQUEST_RESPONSES&format=BRUNO" -o traffic.bruno.zip

The same five formats are available for type=ACTIVE_EXPECTATIONS too — substitute it in the URL to export the registered matchers instead of captured traffic.

Filter to a specific host (e.g. the Anthropic API):

curl -s -X PUT http://localhost:1080/mockserver/retrieve?type=REQUEST_RESPONSES \
  -d '{"headers": {"host": [{"value": "api.anthropic.com"}]}}'

Streamed Response Capture

LLM APIs stream completions as Server-Sent Events. MockServer relays each chunk immediately to the client (so the agent sees live output) and simultaneously captures up to 256 KB of the stream body in the event log. When a streamed response body exceeds this limit, the logged body is truncated and marked with the response header x-mockserver-stream-truncated: true; the full stream still reaches the client.

The streaming relay applies to HTTP/1.1 proxied responses only. Streaming is auto-detected from the Content-Type: text/event-stream response header. Ordinary chunked responses (without text/event-stream) are aggregated normally. Non-streaming responses are handled identically to before — this feature adds no overhead for ordinary JSON responses.

Relevant configuration properties:

• streamingResponsesEnabled — enable or disable streaming relay (default: true)
• maxStreamingCaptureBytes — maximum bytes captured per stream (default: 262144)
• streamIdleTimeoutSeconds — idle timeout between chunks (default: 60s)

MCP Transport Caveat

LLM Record & Replay

After capturing LLM/MCP traffic through MockServer's proxy, you can snapshot it into a fixture file for deterministic, offline replay. This enables AI application tests that are free (no metered API calls), fast, and reproducible.

How It Works

1. Record — run your AI application through MockServer's proxy as described above. MockServer logs every forwarded request/response pair, including SSE streaming responses.
2. Snapshot — call the record_llm_fixtures MCP tool (or REST API equivalent) to write the captured traffic to a JSON fixture file. Secrets (API keys, auth tokens, cookies) are automatically redacted. SSE streaming responses are converted to MockServer's SSE response format for faithful event-by-event replay.
3. Commit — add the fixture file to version control. It contains no secrets and uses MockServer's standard expectation JSON format.
4. Replay — in your test suite, start MockServer and load the fixture file with load_expectations_from_file or via the initializationJsonPath configuration property. Your application now talks to MockServer instead of the real API and receives the same responses (including SSE streaming) deterministically.

Recording via MCP

If you have an AI agent connected to MockServer's MCP control plane, use the record_llm_fixtures tool:

{
  "method": "tools/call",
  "params": {
    "name": "record_llm_fixtures",
    "arguments": {
      "path": "./fixtures/anthropic-chat.json",
      "requestPath": "/v1/messages"
    }
  }
}

Optional filters:

• requestPath — only include traffic matching this request path
• host — only include traffic matching this host header

Loading Fixtures for Replay

Load the fixture file into MockServer at test startup:

{
  "method": "tools/call",
  "params": {
    "name": "load_expectations_from_file",
    "arguments": {
      "path": "./fixtures/anthropic-chat.json"
    }
  }
}

Alternatively, use MockServer's initializationJsonPath configuration property to load fixtures automatically on startup:

java -jar mockserver-netty-no-dependencies-7.1.0.jar \
  -serverPort 1080 \
  -initializationJsonPath ./fixtures/anthropic-chat.json

Secret Redaction

The record_llm_fixtures tool automatically redacts the following sensitive headers in both requests and responses, replacing their values with ***REDACTED***:

• Authorization (Bearer tokens, Basic auth)
• x-api-key / api-key
• Cookie / Set-Cookie
• Proxy-Authorization

This means fixture files are safe to commit to public or shared repositories without leaking credentials stored in headers.

SSE Streaming Replay

When the recorded response was an SSE stream (from APIs like Anthropic Claude or OpenAI's streaming mode), the fixture converter automatically:

• Detects the stream via the Content-Type: text/event-stream response header
• Parses the captured SSE body into individual events (event type, data, id, retry)
• Produces an HttpSseResponse action that replays each event with a small inter-event delay (50ms)

On replay, your application receives SSE events one by one, just like from the real API. This is important for testing streaming token rendering, progress indicators, and partial-response handling.

If the SSE body was truncated during capture (when it exceeded maxStreamingCaptureBytes), the fixture falls back to a static response with a warning header. Increase maxStreamingCaptureBytes to capture longer streams.

AI-Powered Stub Generation

When MockServer receives an unmatched request, you can ask it to generate a plausible expectation (stub) automatically using the PUT /mockserver/generateExpectation endpoint. If a runtime LLM backend is configured, MockServer calls the LLM to infer a realistic response based on the request structure and existing expectations. Without an LLM backend, it generates a simple template-based stub.

Generate a Stub Suggestion

Send a PUT request with the unmatched request in the body:

curl -X PUT http://localhost:1080/mockserver/generateExpectation \
  -H "Content-Type: application/json" \
  -d '{
    "request": {
      "method": "GET",
      "path": "/api/users/42"
    },
    "preview": true,
    "limit": 1
  }'

The response contains one or more suggested expectations:

{
  "suggestions": [
    {
      "httpRequest": {
        "method": "GET",
        "path": "/api/users/42"
      },
      "httpResponse": {
        "statusCode": 200,
        "body": "{\"status\":\"ok\"}"
      }
    }
  ],
  "confidence": 0.75,
  "preview": true
}

Parameters

• request (required) — the unmatched HTTP request to generate a stub for
• preview (default: true) — when true, returns the suggestion for review without registering it; set to false to register the expectation immediately
• limit (default: 1, max: 5) — number of suggestions to return

LLM Backend

To enable AI-powered generation, configure a runtime LLM backend using the standard MockServer LLM properties (mockserver.llmProvider, mockserver.llmApiKey, etc.) or environment variables (OPENAI_API_KEY, ANTHROPIC_API_KEY, etc.). When configured, the LLM uses existing expectations as context to infer the API style and generates more realistic responses. Without an LLM backend, the endpoint still works using simple template generation (appropriate status codes for each HTTP method, with a generic JSON body).

Request Diffing

The PUT /mockserver/diff endpoint compares two HTTP requests field-by-field and returns the differences. This is useful for regression testing — record a session baseline and compare it against a later session to detect changes in method, path, headers, query parameters, cookies, or body.

Request Format

Send a JSON body with expected and actual fields, each containing a serialized HttpRequest:

curl -X PUT 'http://localhost:1080/mockserver/diff' \
  -H 'Content-Type: application/json' \
  -d '{
    "expected": {
      "method": "GET",
      "path": "/api/users",
      "headers": [{"name": "Accept", "values": ["application/json"]}]
    },
    "actual": {
      "method": "POST",
      "path": "/api/users",
      "headers": [{"name": "Accept", "values": ["text/html"]}]
    }
  }'

Response Format

The response contains a diffCount, an identical boolean, and a diffs array with one entry per field difference:

{
  "diffCount": 2,
  "identical": false,
  "diffs": [
    {
      "field": "method",
      "expectedValue": "GET",
      "actualValue": "POST",
      "diffType": "CHANGED"
    },
    {
      "field": "header.accept",
      "expectedValue": "application/json",
      "actualValue": "text/html",
      "diffType": "CHANGED"
    }
  ]
}

Each diff entry includes a diffType of ADDED (field only in actual), REMOVED (field only in expected), or CHANGED (field present in both but different). Fields that are identical are omitted from the response.

Related Pages

• HTTPS & TLS — full details on trusting the MockServer CA certificate
• Getting Started Proxying — general proxy setup and client configuration
• Debugging with AI — using AI assistants to analyse captured traffic via MCP
• MCP Setup — connect your AI assistant to MockServer so it can read the recorded traffic
• MCP Tools Reference — the retrieve_recorded_requests and related tools used to inspect captured traffic
• Proxying Configuration — all proxy-related configuration properties
• MockServer UI — dashboard overview

AI Integration — See Also

• MCP Setup — connect Claude Code, Cursor, Windsurf, Cline, or OpenCode to MockServer's built-in MCP endpoint
• MCP Tools Reference — full documentation of all MCP tools, parameters, and resources
• Debugging with AI — workflows for using AI assistants to debug HTTP traffic via MCP
• AI Traffic Inspection — inspect and record LLM/MCP traffic for debugging and deterministic replay
• OpenAPI Contract Verification — verify recorded traffic and run contract/resiliency tests against an OpenAPI spec
• OpenAPI for AI — use MockServer's OpenAPI spec as a fallback for AI tools without MCP support
• AI Protocol Mocking (MCP & A2A) — mock MCP servers and A2A agents your AI application depends on
• LLM Response Mocking — mock LLM API responses from OpenAI, Anthropic, Gemini, Bedrock, Azure OpenAI, and Ollama with provider-correct formatting, streaming, conversations, and chaos
• llms.txt — machine-readable index of MockServer documentation for AI assistants and LLMs
